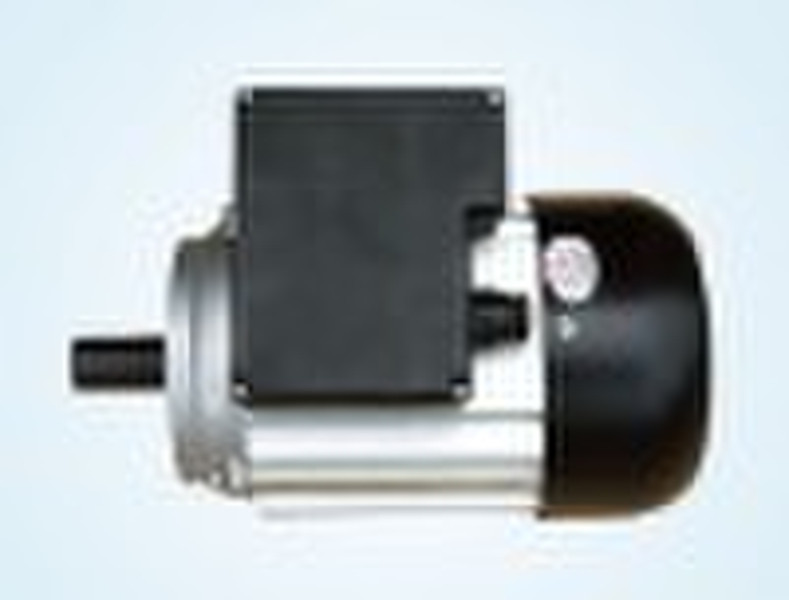

YY Series Capacitor-running Asynchronous motor

1)YY Series Capacitor-running Asynchronous motor 2)Rated Volt:220V 3)Rated Frequency:50Hz 4)Working System:S1 YY series motor is full-close rat-cage single-phase capacitor-start asynchronous motor self-cooled by fan,The motor is of the characteristic of simple structure,safe and reliable working,easy maintenance,excellent technique guideline and so on. As ordinary-purpose motor, the series is used to indoor appilance,recorder,film bioscope,fan and so on. Working condition: The motor can work on the rated power continuously under the following condition:the altitude is no more than 1000m and the environmental air temperature is no more than +40°C. Rated Volt:220V Rated Frequency:50Hz Working System:S1 Insulation Grade:(E OR B) Protection Grade:IP44 Cooling Type:IC 411 Technical data TypeRated power (KW)Rated Volt (V)Rated current (V)Rated speed (r/min)Efficient (%)Power factor (cos)Locked current (A)Locked-rotor torque/Rated torqueMaximal torque/Rated torqueYawp dB(A)Synchronous speed 3000r/min 2poleYY71120.372202.732800670.92100.351.775YY71120.553.882800700.92150.3575YY80120.755.152800720.92200.3375YY80221.17.022800750.95300.3378YY90S-21.59.442800760.95450.3083YY90L-22.213.72800770.95650.3083Synchronous speed 1500r/min 4poleYY71140.252202.021400610.9270.351.765YY71140.372.951400620.92100.3570YY80140.554.251400640.92150.3570YY80240.755.451400680.92200.3270YY90S-41.17.411400710.95300.3273YY90L-41.59.831400730.95450.3078
